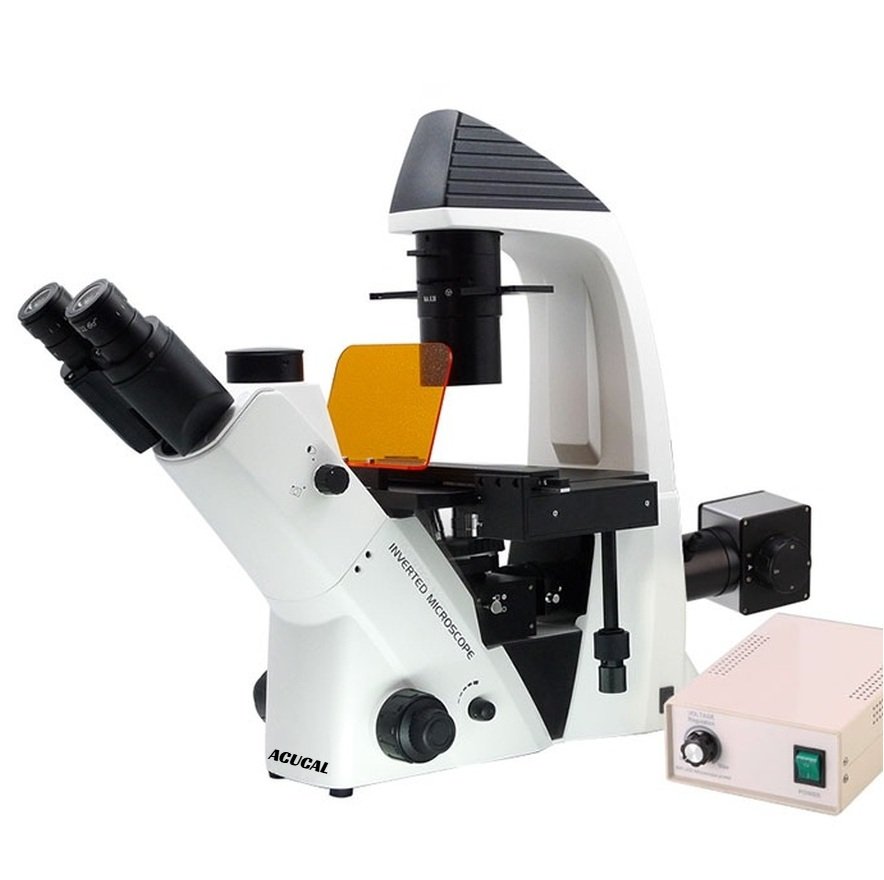

Inverted Research Fluorescent Microscope, Type: ACUBL-I4 FL

DESCRIPTION :

ACUCAL inverted fluorescent microscope uses fluorescence to study specimens, such as living cells at the bottom of a petri dish or tissue culture. The Inverted Fluorescent Microscope has similar components to those of other microscopes, and the only difference is the arrangement of the parts, which are placed in inverted positions.
The specimen is lit using a halogen lamp or LED as a light source. When light enters the microscope, it strikes a dichroic mirror, reflecting one range of wavelengths while allowing another to pass through. The ultraviolet light is reflected up to the specimen by the dichroic mirror. The UV light causes fluorescence in the specimen’s molecules and the fluorescent-wavelength light generated is collected by the objective lens.


FEATURES :

• Main Body : Compact & sturdy Inverted main frame Ergonomic Design, Highly rigid, Non Hinged type, vibration free Aluminium alloy    casting, Robust mechanics combined with improved optical performance. Design supports all kinds of dishes, Flasks, Petri plates & Multi wells.
• Optical System : LWD Universal Plan Infinity corrected Optical System having Anti Fungus coated optics, anti-bacterial coated (multi-layered hard coated). LWD Plan Infinity Bright Field, Phase Contrast & Fluorescence Observation.
• Observation Head: Ergonomic siedentopf Binocular/Trinocular head.
• Eyepiece:Extra wide field, high point with diopter adjustment.
• Nose Piece: Quadruple/quintuple nosepiece Ball Bearing loaded, interchangeable, Precise, Positive click stops for centred alignment.
• Objectives: Long Working Distance Infinity, Anti-fungus, Interchangeable & Par focal.
• Condenser: LWD with iris diaphragm & filter slot brightfield, phase contrast.
• Mechanical Stage : Hard coated surface, support multiple stage inserts, detachable travelling stage with right/left hand control, low position coaxial movement .
• Focusing Control : Coaxial Coarse & Fine knob for focusing system by the vertical movement of revolving nosepiece and fixed stage. Tension Adjustable and Limit Stopper.
• Illumination: Koehler Transmitted Illumination, Halogen Lamp or  LED, Brightness Adjustable.
• Epi Fluorescence Attachment : Epi fluorescence media unit LED , field diaphragm,center adjustable.
• Electronics : Universal Input 100V-240 V AC, 50/60 Hz.


• Availibility: In Stock
• Categories : Microscopes
• SKU : ACUBL-I4FL
