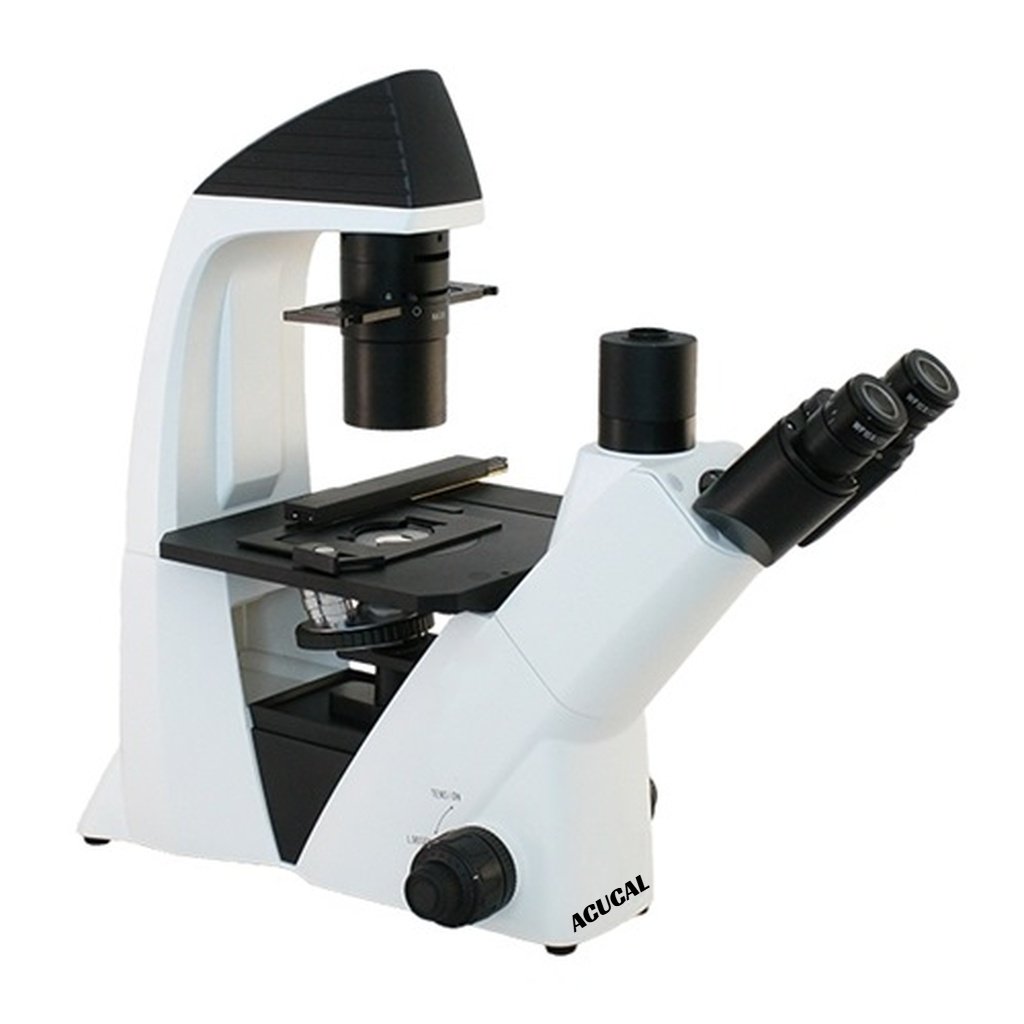

Inverted Research Biological Microscope, Type: ACUBL-I4

DESCRIPTION :

ACUCAL Inverted Biological microscope is Phase Contrast Microscope for highly translucent, low-contrast and challenging specimens (e.g. living mammal cells, biological sections, biological cells bacteria, tissues culture, living tissue, fluid precipitation etc.). The phase contrast process makes low-contrast structures in specimens visible to the human eye.

FEATURES :

•    Main Body : Compact & sturdy Inverted main frame Ergonomic Design, Highly rigid, Non Hinged type, vibration free Aluminium alloy casting, Robust mechanics combined with improved optical performance. Design supports all kinds of dishes, Flasks, Petri plates & Multi wells.
•    Optical System : LWD Universal Plan Infinity corrected Phase Contrast Optical System having Anti Fungus coated optics, anti-bacterial coated (multi-layered hard coated).
•    Observation Head: Ergonomic siedentopf Binocular/Trinocular head.
•    Eyepiece:Extra wide field, high point with diopter adjustment.
•    Nose Piece: Quadruple/quintuple nosepiece Ball Bearing loaded, interchangeable, Precise, Positive click stops for centred alignment.
•    Objectives: Long Working Distance Infinity, Anti-fungus, Interchangeable & Par focal (Both for Bright Field & Phase Contrast).
•    Condenser: LWD with iris diaphragm & filter slot brightfield, phase contrast.

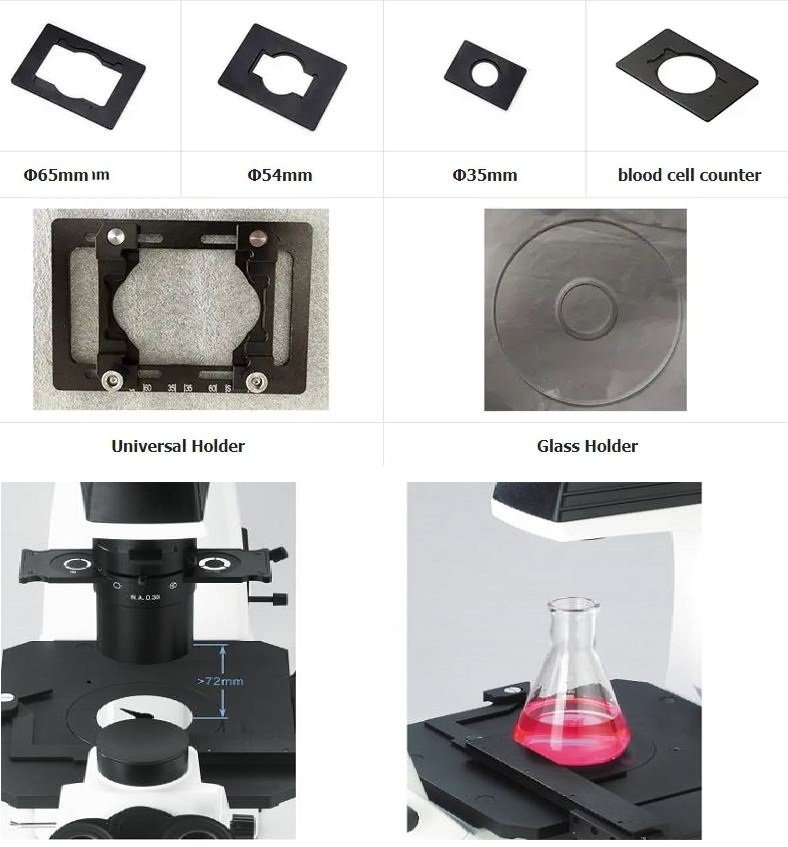

•    Mechanical Stage : Hard coated surface, support multiple stage inserts, detachable travelling stage with right/left hand control, low position coaxial movement .
•    Focusing Control : Coaxial Coarse & Fine knob for focusing system by the vertical movement of revolving nosepiece and fixed stage. Tension Adjustable and Limit Stopper.
•    Illumination: Koehler Transmitted Illumination, Halogen Lamp or  LED, Brightness Adjustable.
•    Electronics : Universal Input 100V-240 V AC, 50/60 Hz.
